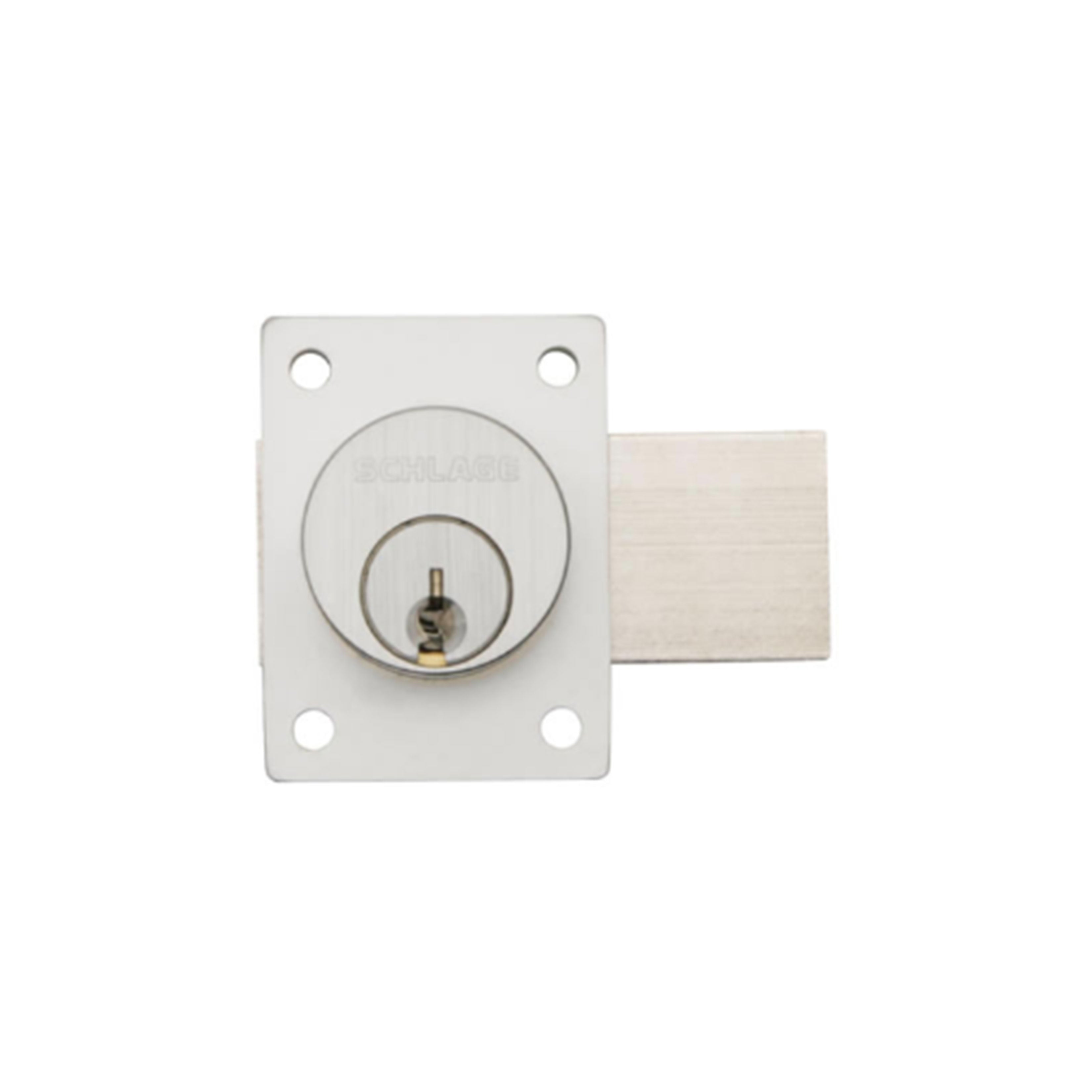

Schlage Cabinet Locks CL1000

Schlage CL1000 Series cabinet door and drawer locks use full-size high-quality Schlage cylinders. Cabinet locks can be master keyed to other Schlage locks, providing the convenience of a single-key operation. The CL1000 Series is quick and easy to rekey.

Features

1. Suitable for either cabinet door or drawer applications
2. Fits doors 22mm to 35mm thick
3. 25mm throw steel deadbolt for added strength
4. Schlage solid brass 6 pin cylinder
5. Cylinder housing rotates to allow vertical or horizontal bolt throw
6. Cylinder retaining screw for quick and easy rekeying

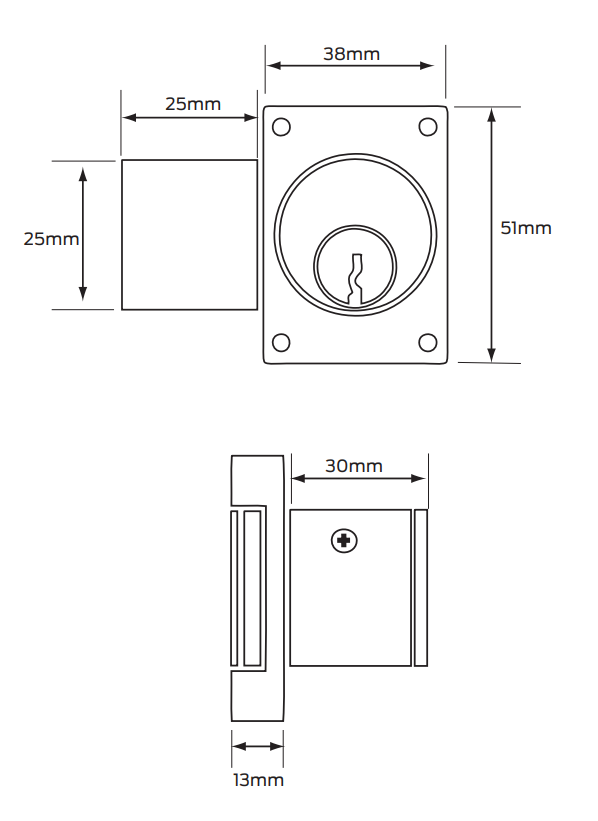

Technical specifications
Door type     Timber or metal
Door thickness     22m to 32mm
Lock case     Zinc 29mm diameter housing
Bolt     Steel 25mm throw
Strike plate     Delrin
Bar strike     Delrin
Backsets     19mm minimum    32mm maximum
